DS2141A Datasheet - Dallas Semiconducotr

T1 Controller

DS2141A Features

* DS1/ISDN-PRI framing transceiver Frames to D4, ESF, and SLC-96 formats Parallel control port Onboard, dual two-frame elastic store slip buffers Extracts and inserts robbed-bit signaling Programmable output clocks Onboard FDL support circuitry 5V supply; low-power CMOS Available in 40-pin DIP and 44-

DS2141A General Description

The DS2141A is a comprehensive, software-driven T1 framer. It is meant to act as a slave or coprocessor to a microcontroller or microprocessor. Quick access via the parallel control port allows a single micro to handle many T1 lines. The DS2141A is very flexible and can be configured into numerous o.

DS2141A Datasheet (470.07 KB)

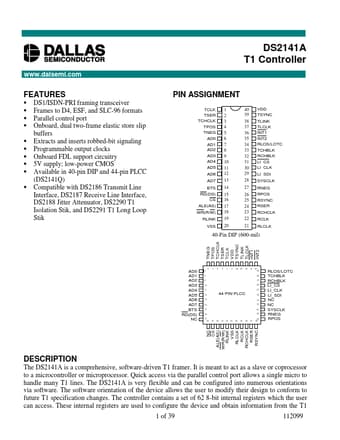

DS2141A Datasheet Preview — Preview of DS2141A PDF

Datasheet Details

Part number:

DS2141A

Manufacturer:

Dallas Semiconducotr

File Size:

470.07 KB

Description:

T1 controller.
