DS2108

Differential SCSI Switchable Terminator

DS2108 Features

* Fully compliant with SCSI, SCSI-2 and SCSI3 standards Conforms to EIA RS-485 standard Provides differential termination for 9 pairs of signal lines Operates with SCSI signal voltages of -7 to +12 Volts Laser-trimmed 330 and 150-ohm termination resistors have ±5% tolerance over full temperature range

DS2108 General Description

The DS2108 SCSI Terminator has been specifically designed for High Voltage Differential (HVD) SCSI systems requiring switchable termination. The DS2108 integrates eighteen 330-ohm and nine 150-ohm precise switched termination resistors into a monolithic IC. The surface mount SOIC package saves board.

DS2108 Datasheet (68.49 KB)

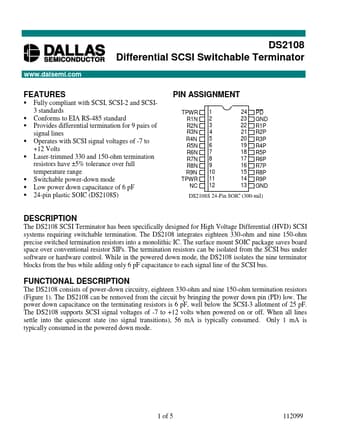

Preview of DS2108 PDF

Datasheet Details

Part number:

DS2108

Manufacturer:

Dallas Semiconducotr

File Size:

68.49 KB

Description:

Differential scsi switchable terminator.
