DS2118M

Ultra3 LVD/SE SCSI Terminator

DS2118M Features

* Fully Compliant with SCSI SPI-2, SPI-3, SPI-4, Ultra160, and Ultra320 Provides Multimode Low-Voltage Differential/Single-Ended (LVD/SE) Termination for Nine Signal Line Pairs Autoselection of LVD or SE Termination 5% Tolerance on SE and LVD Termination Resistance Low Power-Down Capacitance of 3pF On

DS2118M General Description

The DS2118M Ultra3 LVD/SE SCSI terminator is both a low-voltage differential (LVD) and singleended (SE) terminator. The multimode operation enables the designer to implement LVD in current products while allowing the end-user SE-backward compatibility with legacy devices. If the device is connected .

DS2118M Datasheet (414.83 KB)

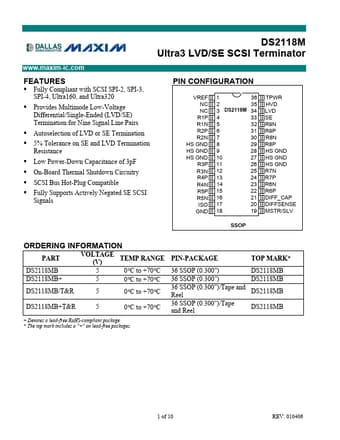

Preview of DS2118M PDF

Datasheet Details

Part number:

DS2118M

Manufacturer:

Dallas Semiconducotr

File Size:

414.83 KB

Description:

Ultra3 lvd/se scsi terminator.
