DS2120

Ultra3 LVD SCSI Terminator

DS2120 Features

* Fully compliant with Ultra3, Ultra160, Ultra320, and Ultra2 (LVD only) SCSI Provides low-voltage differential (LVD) termination for nine signal line pairs Zero-temperature coefficient-termination resistors Auto-select of LVD termination 5% tolera

DS2120 General Description

The DS2120 Ultra3 LVD SCSI terminator is a low-voltage differential (LVD) terminator. If the device is connected in an LVD-only bus, the DS2120 uses LVD termination. If any single-ended (SE) or highvoltage differential (HVD) devices are connected to the bus, the DS2120 disconnects from the bus. This.

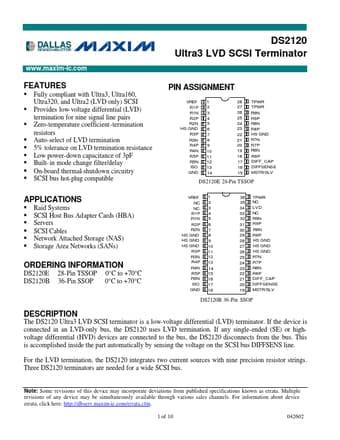

DS2120 Datasheet (334.12 KB)

Preview of DS2120 PDF

Datasheet Details

Part number:

DS2120

Manufacturer:

Dallas Semiconducotr

File Size:

334.12 KB

Description:

Ultra3 lvd scsi terminator.
