DS76KHZ - 76.8 kHz TCXO

Datasheet Summary

Description

The DS76KHz is a temperature-compensated crystal oscillator (TCXO) with an output frequency of 76.8 kHz.

This device is available in commercial and industrial temperature versions, DS76KHz and DS76KHz-N respectively.

The DS76KHz requires four pins for operation: VCC, GND, VBAT and 76KHz OUT.

Features

  • Accurate to ±7.5 ppm (-40°C to +85°C) Accurate to ±2 ppm (0°C to 40°C) Battery back up for continuous output VBAT operating voltage 2.7 to 5.5 volts (with VCC grounded) VCC operating voltage 4.5 to 5.5 volts Operating temperature range: COM: 0°C to 70°C IND: -40°C to +85°C No calibration required Low power consumption Surface mountable VCC: VBAT: 76KHz: GND: C2, C3, D2, D3 A4, A5, B4, B5 C4, C5, D4, D5 All Remaining Balls PIN.

📥 Download Datasheet

Datasheet preview – DS76KHZ

Datasheet Details

Part number DS76KHZ
Manufacturer Dallas Semiconducotr
File Size 104.76 KB
Description 76.8 kHz TCXO
Datasheet download datasheet DS76KHZ Datasheet
Additional preview pages of the DS76KHZ datasheet.

📁 Similar Datasheet

  • DS7640 - Quad NOR Unified Bus Receiver (National Semiconductor)
  • DS75-08B - Rectifier Diode (IXYS)
  • DS75-12B - Rectifier Diode (IXYS)
  • DS7505 - Digital Thermometer and Thermostat (Maxim Integrated)
  • DS751-40EAA02 - Schottky barrier diode (JCET)
  • DS751-40LED02 - Schottky barrier diode (JCET)
  • DS751-40LED02 - SURFACE MOUNT SCHOTTKY BARRIER DIODE (Lite-On)
  • DS751-40WB - Schottky barrier Diode (WILLAS)
  • DS75107 - Dual Line Receiver (National Semiconductor)
  • DS75110A - Dual Line Drivers (National Semiconductor)
Other Datasheets by Dallas Semiconducotr
  • DS75 - Digital Thermometer and Thermostat

Full PDF Text Transcription

Click to expand full text

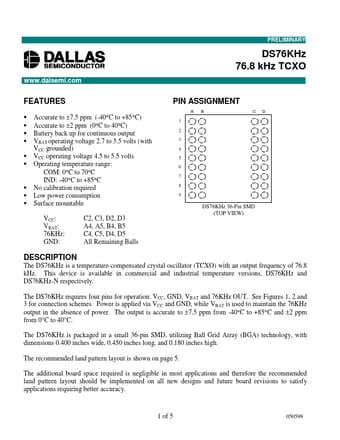

PRELIMINARY DS76KHz 76.8 kHz TCXO www.dalsemi.com FEATURES Accurate to ±7.5 ppm (-40°C to +85°C) Accurate to ±2 ppm (0°C to 40°C) Battery back up for continuous output VBAT operating voltage 2.7 to 5.5 volts (with VCC grounded) VCC operating voltage 4.5 to 5.5 volts Operating temperature range: COM: 0°C to 70°C IND: -40°C to +85°C No calibration required Low power consumption Surface mountable VCC: VBAT: 76KHz: GND: C2, C3, D2, D3 A4, A5, B4, B5 C4, C5, D4, D5 All Remaining Balls PIN ASSIGNMENT A 1 2 3 4 5 6 7 8 9 B C D DS76KHz 36-Pin SMD (TOP VIEW) DESCRIPTION The DS76KHz is a temperature-compensated crystal oscillator (TCXO) with an output frequency of 76.8 kHz. This device is available in commercial and industrial temperature versions, DS76KHz and DS76KHz-N respectively.
