DS1284

(DS1284 / DS1286) Watchdog Timekeepers

Dallas Semiconductor

DS1284 Features

* Keeps Track of Hundredths of Seconds, Seconds, Minutes, Hours, Days, Date of the Month, Months, and Years; Valid Leap Year Compensation Up to 2100 Watchdog Timer Restarts an Out-of-Control Processor Alarm Function Schedules Real-Time-Related Activities Embedded Lithium Energy Cell Maintains Time, Wa

DS1284 General Description

The DS1284/DS1286 watchdog timekeepers are self-contained real-time clocks, alarms, watchdog timers, and interval timers in a 28-pin JEDEC DIP and encapsulated DIP package. The DS1286 contains an embedded lithium energy source and a www.DataSheet4U.com quartz crystal, which eliminates the need for a.

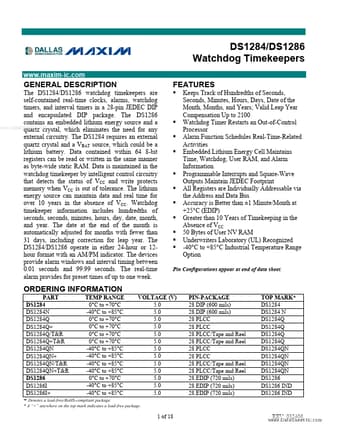

DS1284 Datasheet (426.62 KB)

DS1284 Datasheet Preview — Preview of DS1284 PDF

Datasheet Details

Part number:

DS1284

Manufacturer:

Dallas Semiconductor

File Size:

426.62 KB

Description:

(ds1284 / ds1286) watchdog timekeepers.
