DS2506-UNW

(DS250x-UNW) UniqueWare Add-Only Memory

DS2506-UNW Features

* 1024 bits, 16 kbits or 64 kbits Electrically Programmable Read Only Memory (EPROM) communicates with the economy of one signal plus ground

* Unique, factory-lasered and tested 64-bit registration number (8-bit family code, 36-bit serialization, 12-bit UniqueWare identifier 5E7H, 8-bit CRC-

DS2506-UNW General Description

UniqueWare Add-Only Memories are factory programmed versions of the DS2502 (1024 bit), the DS2505 (16-kbit) and the DS2506 (64k bit) Add-Only Memories, respectively. They differ from the regular devices in their custom ROM family codes (see Ordering Information) and the UniqueWare Identifier 5E7 in .

DS2506-UNW Datasheet (37.88 KB)

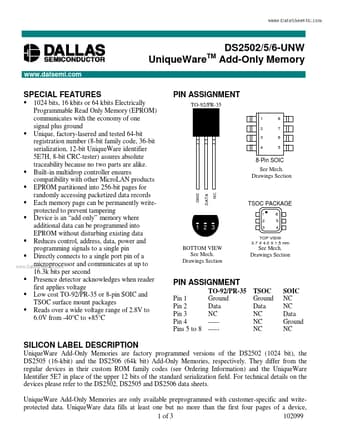

Preview of DS2506-UNW PDF

Datasheet Details

Part number:

DS2506-UNW

Manufacturer:

Dallas Semiconductor

File Size:

37.88 KB

Description:

(ds250x-unw) uniqueware add-only memory.
