DS2505-UNW, DS2502-UNW UniqueWare Add-Only Memory

DS2505-UNW Description

19-5069; 12/09 www.maxim-ic.com DS2502/5-UNW UniqueWare Add-Only Memory SPECIAL .
UniqueWare Add-Only Memories are factory programmed versions of the DS2502 (1024 bit) and the DS2505 (16Kb) Add-Only Memories, respectively.

DS2505-UNW Features

* 1024 bits or 16Kb Electrically Programmable Read Only Memory (EPROM) communicates with the economy of one signal plus ground
* Unique, factory-lasered and tested 64-bit registration number (8-bit family code, 36-bit serialization, 12-bit UniqueWare identifier 5E7h, 8-bit CRC-tester) assure

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DS2505-UNW, DS2502-UNW. Please refer to the document for exact specifications by model.

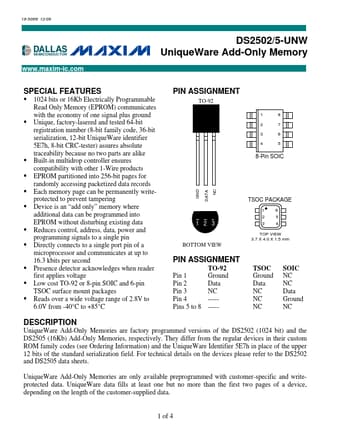

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DS2505-UNW, DS2502-UNW
Manufacturer
Dallas Semiconductor
File Size
37.88 KB
Datasheet
DS2502-UNW_DallasSemiconductor.pdf
Description
UniqueWare Add-Only Memory
Note
This datasheet PDF includes multiple part numbers: DS2505-UNW, DS2502-UNW.
Please refer to the document for exact specifications by model.
