DS2501 512-Bit Add-Only Memory

Maxim Integrated

Description

19-4922; Rev 2/12 DS2501 512-Bit Add-Only Memory .
The DS2501 512-bit add-only memory identifies and stores relevant information about the product to which it is associated.

📥 Download Datasheet

DS2501 Datasheet Preview — Preview of DS2501 PDF

Datasheet Specifications

Part number: DS2501
Manufacturer: Maxim Integrated ↗
File Size: 285.64 KB
Datasheet: DS2501-MaximIntegrated.pdf
Description: 512-Bit Add-Only Memory

Features

* ▪ 512 bits Electrically Programmable Read Only Memory (EPROM) communicates with the economy of one signal plus ground ▪ Unique, factory-lasered and tested 64-bit registration number (8-bit family code + 48bit serial number + 8-bit CRC tester) assures absolute traceability because no two parts are al

Applications

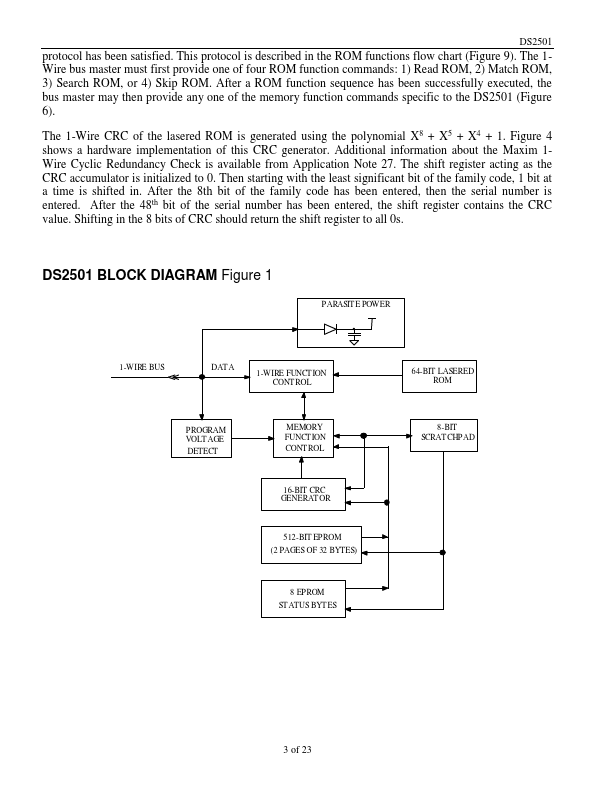

* include storage of calibration constants, product attribute identification, asset tracking, product revision status, and access codes. OVERVIEW The block diagram in Figure 1 shows the relationships between the major control and memory sections of the DS2501. The DS2501 has three main data components
