DDU222F - TTL-INTERFACED FIXED DELAY LINE

PIN DESCRIPTIONS The DDU222F-series device is a 5-tap digitally buffered delay line. The IN Signal Input signal input (IN) is reproduced at the outputs (T1-T5), shifted in time by an T1-T5 Tap Outputs amount given by the device dash number. For dash numbers less than VCC +5 Volts 25, the total del.

DDU222F Features

* Five equally spaced outputs Very narrow device (SIP package) Stackable for PC board economy Input & outputs fully TTL interfaced & buffered 10 T2L fan-out capability data 3 ® delay devices, inc. PACKAGES 1 2 3 4 5 6 7 8 VCC IN T1 T2 T3 T4 T5 GND DD

DDU222F_DataDelayDevices.pdf

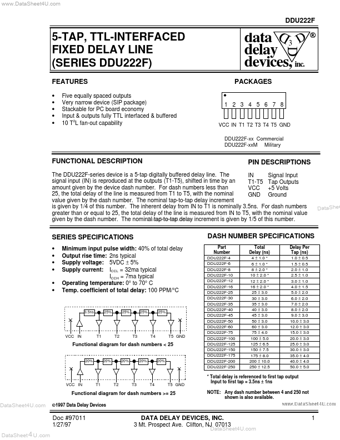

DDU222F Datasheet Preview — Preview of DDU222F PDF

Datasheet Details

Part number:

DDU222F

Manufacturer:

Data Delay Devices

File Size:

207.42 KB

Description:

Ttl-interfaced fixed delay line.
