DAC-88 12-Bit DAC

DAC-88 Description

DAC-88 Series High-Performance, 12-Bit DACs with Input Registers .
INPUTS Resolution Coding, Unipolar Output Coding, Bipolar Output Input Logic Level, Bit ON ("1") Input Logic Level, Bit OFF ("0") Logic Loading Load I.

DAC-88 Features

* 12-Bit resolution
* Integral nonlinearity error ±1/2LSB, max.
* Differential nonlinearity error ±3/4LSB, max.
* MIL-STD-883 high-reliability versions available
* Input register
* 3μs fast output settling time
* Guaranteed monotonicity over fu

DAC-88 Applications

* such as data bus interfacing with computers. When the “load/Register Enable” input is high, data in the storage register is held, and when the load input is low, data is transferred through to the DAC. There are two basic models available by coding option: binary and two’s complement. The output vol

📥 Download Datasheet

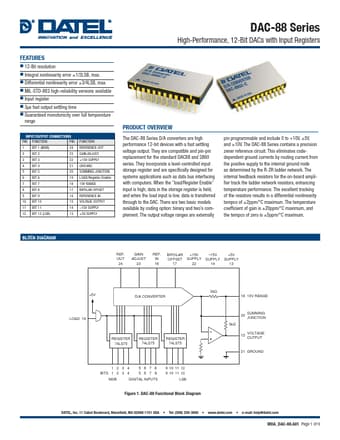

Preview of DAC-88 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DAC-88
Manufacturer
Datel
File Size
210.60 KB
Datasheet
DAC-88-Datel.pdf
Description
12-Bit DAC
