DAC-88ME, DAC-88 12-Bit DAC

DAC-88ME Description

DAC-88 Series High-Performance, 12-Bit DACs with Input Registers .
INPUTS Resolution Coding, Unipolar Output Coding, Bipolar Output Input Logic Level, Bit ON ("1") Input Logic Level, Bit OFF ("0") Logic Loading Load I.

DAC-88ME Features

* 12-Bit resolution
* Integral nonlinearity error ±1/2LSB, max.
* Differential nonlinearity error ±3/4LSB, max.
* MIL-STD-883 high-reliability versions available
* Input register
* 3μs fast output settling time
* Guaranteed monotonicity over fu

DAC-88ME Applications

* such as data bus interfacing with computers. When the “load/Register Enable” input is high, data in the storage register is held, and when the load input is low, data is transferred through to the DAC. There are two basic models available by coding option: binary and two’s complement. The output vol

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DAC-88ME, DAC-88. Please refer to the document for exact specifications by model.

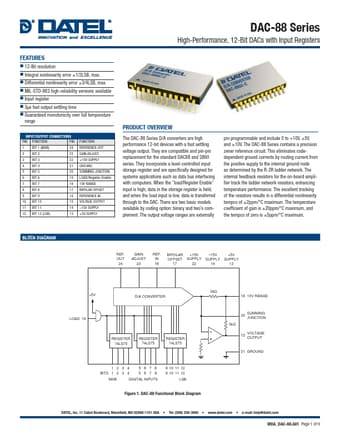

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DAC-88ME, DAC-88
Manufacturer
Datel
File Size
210.60 KB
Datasheet
DAC-88-Datel.pdf
Description
12-Bit DAC
Note
This datasheet PDF includes multiple part numbers: DAC-88ME, DAC-88.
Please refer to the document for exact specifications by model.
