DAC2F100P6S, DAC2F100N6S - Ultra-Fast Soft Recovery Diode Module

The DAC2F100P6S by Dawin Electronics is a Ultra-Fast Soft Recovery Diode Module. Below is the official datasheet preview.

Datasheet Details

Part number	DAC2F100P6S, DAC2F100N6S
Manufacturer	Dawin Electronics
File Size	109.25 KB
Description	Ultra-Fast Soft Recovery Diode Module
Datasheet	DAC2F100N6S-DawinElectronics.pdf
Note	This datasheet PDF includes multiple part numbers: DAC2F100P6S, DAC2F100N6S. Please refer to the document for exact specifications by model.

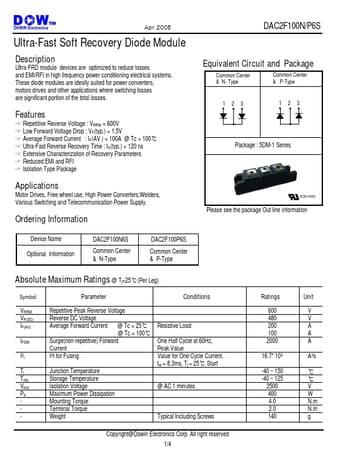

Additional preview pages of the DAC2F100P6S datasheet.

Ultra-FRD module devices are optimized to reduce losses and EMI/RFI in high frequency power conditioning electrical systems.

☞ Repetitive Reverse Voltage : VRRM = 600V ☞ Low Forward Voltage Drop : VF(typ. ) = 1.5V ☞ Average Forward Current : IF(AV. ) = 100A @ Tc = 100℃ ☞ Ultra-Fast Reverse Recovery Time : trr(typ. ) = 120 ns ☞ Extensive Characterization of Recovery Parameters ☞ Reduced EMI and RFI ☞ Isolation Type Package.
