DB105S, DB101S SINGLE-PHASE SILICON BRIDGE RECITFIER

Dc Components

Description

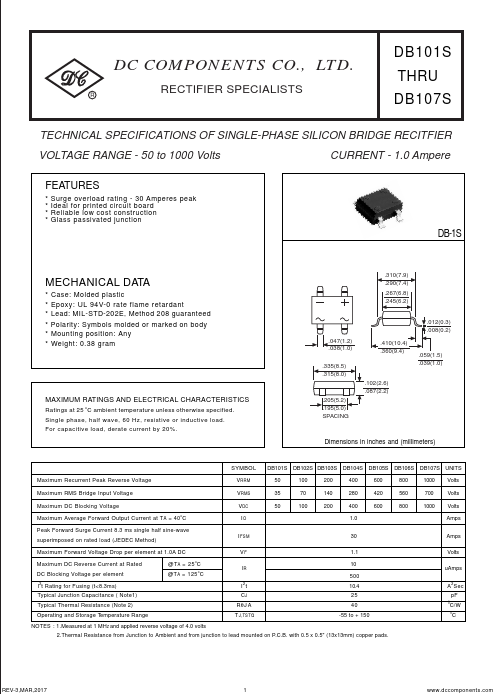

DC COMPONENTS CO., LTD.R RECTIFIER SPECIALISTS DB101S THRU DB107S TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECITFIER VOLTAGE RANG.

📥 Download Datasheet

DB105S Datasheet Preview — This datasheet PDF includes multiple part numbers: DB105S, DB101S. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: DB105S, DB101S
Manufacturer: Dc Components
File Size: 56.21 KB
Datasheet: DB101S-DcComponents.pdf
Description: SINGLE-PHASE SILICON BRIDGE RECITFIER
Note: This datasheet PDF includes multiple part numbers: DB105S, DB101S.
Please refer to the document for exact specifications by model.

Features

* Surge overload rating - 30 Amperes peak
* Ideal for printed circuit board
* Reliable low cost construction
* Glass passivated junction DB-1S MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: MIL-STD-202E, Method 208 guaranteed

Applications

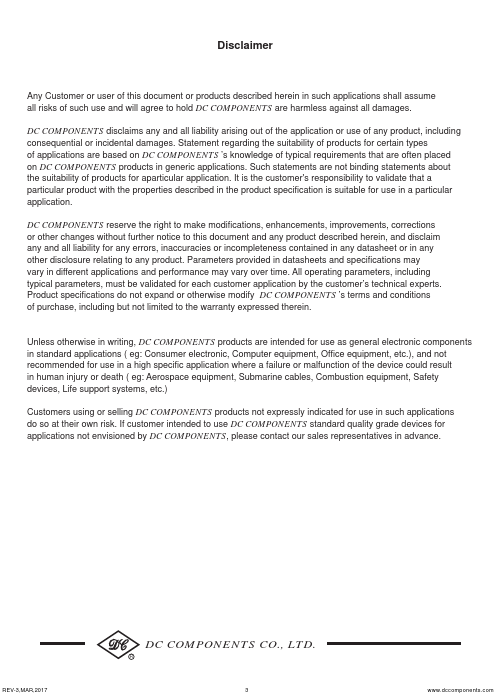

* shall assume all risks of such use and will agree to hold DC COMPONENTS are harmless against all damages. DC COMPONENTS disclaims any and all liability arising out of the application or use of any product, including consequential or incidental damages. Statement regarding the suitability of products
