DLM103B, DLM103A Datasheet - Dc Components

DLM103B SURFACE MOUNT SCHOTTKY BARRIER DIODES

DLM103B Features

* For general purpose applications Low turn-on voltage Fast switching time Protected by a PN junction guard ring against excessive voltage, such as electrostatic discharge(ESD) Micro Melf MECHANICAL DATA

* Case: Glass sealed case Micro Melf

* Terminals: Solder plated

DLM103A_DcComponents.pdf

This datasheet PDF includes multiple part numbers: DLM103B, DLM103A. Please refer to the document for exact specifications by model.

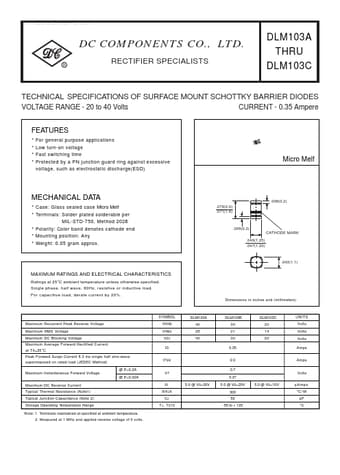

DLM103B Datasheet Preview Page 2

Datasheet Details

Part number:

DLM103B, DLM103A

Manufacturer:

Dc Components

File Size:

133.16 KB

Description:

Surface mount schottky barrier diodes.

Note:

This datasheet PDF includes multiple part numbers: DLM103B, DLM103A.
Please refer to the document for exact specifications by model.
