M16 - TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SILICON RECTIFIER

Datasheet Summary

Features

ldeal for surface mounted.

Dc Components

📥 Download Datasheet

Datasheet Details

Part number	M16
Manufacturer	Dc Components
File Size	396.36 KB
Description	TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SILICON RECTIFIER
Datasheet	M16 Datasheet
Additional preview pages of the M16 datasheet.

📁 Similar Datasheet

M1600A - ON/OFF/ OSH ANDOM/SEQUENCE 6 LED (ETC)
M1603 - S-band Magnetron (Nisshinbo)
M1609NC200 - Fast Recovery Diode (IXYS)
M1609NC220 - Fast Recovery Diode (IXYS)
M1609NC240 - Fast Recovery Diode (IXYS)
M1609NC260 - Fast Recovery Diode (IXYS)
M160FF3 - Spice Model (VMI)
M160SG - Spice Model (VMI)
M160UFG - Spice Model (VMI)
M16175 - OPTICAL MOUSE SENSOR (NST TECHNOLOGIES)

Other Datasheets by Dc Components

Full PDF Text Transcription

Click to expand full text

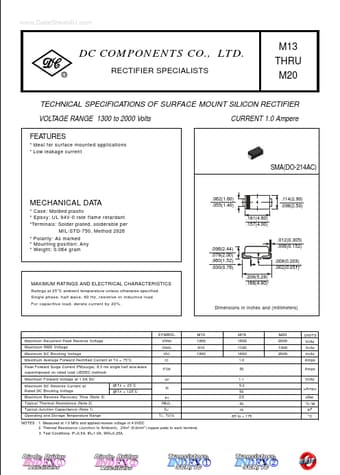

www.DataSheet4U.com DC COMPONENTS CO., LTD. R RECTIFIER SPECIALISTS M13 THRU M20 TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SILICON RECTIFIER VOLTAGE RANGE 1300 to 2000 Volts CURRENT 1.0 Ampere FEATURES * ldeal for surface mounted applications * Low leakage current SMA(DO-214AC) MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant *Terminals: Solder plated, solderable per MIL-STD-750, Method 2026 * Polarity: As marked * Mounting position: Any * Weight: 0.064 gram .062(1.60) .055(1.40) .181(4.60) .157(4.00) .114(2.90) .098(2.50) .096(2.44) .078(2.00) .060(1.52) .030(0.76) .208(5.28) .188(4.80) .012(0.305) .006(0.152) .008(0.203) .002(0.051) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 o C ambient temperature unless otherwise specified.
