SD1020 - (SD1020 - SD10100) TECHNICAL SPECIFICATIONS OF SCHOTTKY BARRIER RECTIFIER

Features

  • Metal to silicon rectifier majority carrier conduction Low power loss, High efficiency High current capability Low forward voltage drop High surge capacity For use in low voltage high frequency inverters, free wheeling, and polarity protection.

📥 Download Datasheet

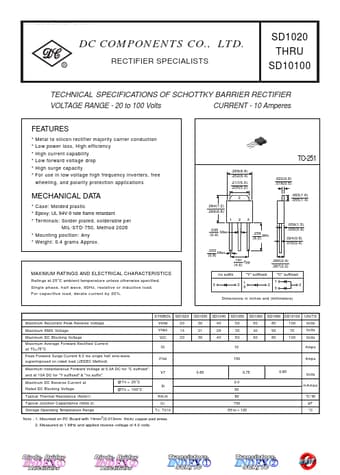

Datasheet preview – SD1020

Datasheet Details

Part number SD1020
Manufacturer Dc Components
File Size 272.58 KB
Description (SD1020 - SD10100) TECHNICAL SPECIFICATIONS OF SCHOTTKY BARRIER RECTIFIER
Datasheet download datasheet SD1020 Datasheet
Additional preview pages of the SD1020 datasheet.
