SD1050D - (SD1020D - SD10100D) TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SCHOTTKY BARRIER DIODE

This page provides the datasheet information for the SD1050D, a member of the SD1020D (SD1020D - SD10100D) TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SCHOTTKY BARRIER DIODE family.

Features

  • Metal to silicon rectifier majority carrier conduction Low power loss, High efficiency High current capability Low forward voltage drop High surge capacity For use in low voltage high frequency inverters, free wheeling, and polarity protection.

📥 Download Datasheet

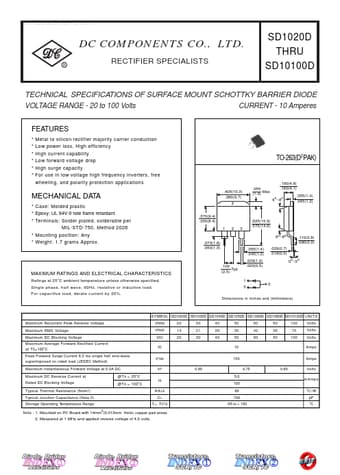

Datasheet preview – SD1050D

Datasheet Details

Part number SD1050D
Manufacturer Dc Components
File Size 311.59 KB
Description (SD1020D - SD10100D) TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SCHOTTKY BARRIER DIODE
Datasheet download datasheet SD1050D Datasheet
