DFBM-CA120

Wireless communication module compliant

DFBM-CA120 Features

* z Suitable for Headsets, Cellular Headsets, PDAs ……., etc. z Small size and Low Profile using high-density packaging technology. z High sensitivity for better reception. z Various interfaces: UART, USB and PCM. z Wide operating temperature range: -40~+85¢J . Device diagram BC2-Audio headset extra

DFBM-CA120 General Description

External Antenna 50£[ TX, RX, RTS, CTS(9600bps~1.5Mbps) Synchronous Serial Interface for firmware download Full speed Universal Serial Bus interface Qualcomm MSM 3000/5000 , Motorola MC145483/ MC145481 OKI MSM7705 , STW 5093/5094 8 terminals 2 terminals Data Sheet Feb 03, 2005 Proprietary Informat.

DFBM-CA120 Datasheet (106.87 KB)

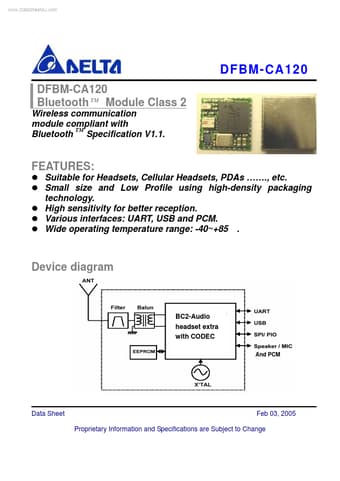

Preview of DFBM-CA120 PDF

Datasheet Details

Part number:

DFBM-CA120

Manufacturer:

Delta Electronics

File Size:

106.87 KB

Description:

Wireless communication module compliant.
www.DataSheet4U.com DFBM-CA120 DFBM-CA120 Bluetooth TM Module Class 2 Wireless communication module compliant with TM Bluetooth Specification V1.1. .
