DFBM-CM221

A Class 2 Bluetooth module suitable

DFBM-CM221 Features

* High Integrate, need minimum external components. Compliant to various interfaces: SPI, UART, USB. 2.Device Diagram S5~S6 S1~S4 Reset UART, USB, SPI LED Audio In/Out 1.8V Battery BC3-MM 1.8V X’tal Regulator Charger VUSB or DC Jack Data Sheet May 23, 2005 Proprietary Information and Specificat

DFBM-CM221 General Description

Pin No. 1 2 3 4 5 6 7 8 Data Sheet Name D2 GND ANT PIO11 MIC_P_R MIC_N_R MIC_P_L MIC_N_L Ground RF input/output Description Light if power on or pair Programmable input/output Microphone input positive (right side) Microphone input negative (right side) Microphone input positive (left side) Micro.

DFBM-CM221 Datasheet (385.06 KB)

Preview of DFBM-CM221 PDF

Datasheet Details

Part number:

DFBM-CM221

Manufacturer:

Delta Electronics

File Size:

385.06 KB

Description:

A class 2 bluetooth module suitable.

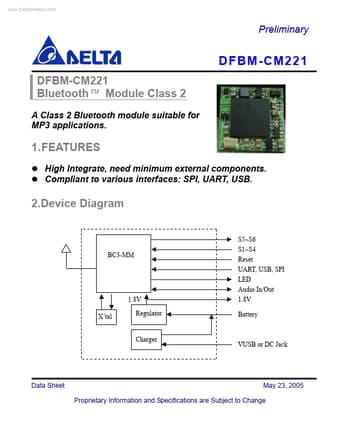

www.DataSheet4U.com Preliminary DFBM-CM221 DFBM-CM221 Bluetooth TM Module Class 2 A Class 2 Bluetooth module suitable for MP3 applications. 1. FEAT.
