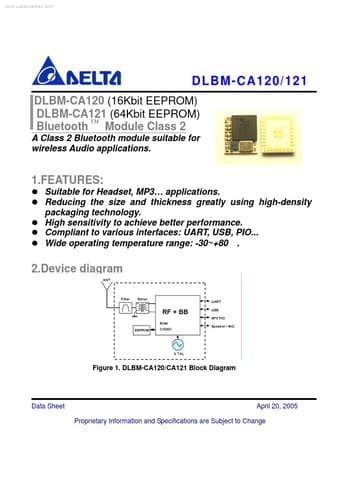

Preview of DLBM-CA120 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DLBM-CA120
Manufacturer
Delta Electronics
File Size
225.45 KB
Datasheet
DLBM-CA120_DeltaElectronics.pdf
Description
(DLBM-CA120 / DLBM-CA121) A Class 2 Bluetooth module suitable

DLBM-CA120 Product details

Description

External Antenna 50 ohm TX,RX,RTS,CTS(9600bps~1.5Mbps) Synchronous Serial Interface for firmware download 9 terminals Data Sheet April 20, 2005 Proprietary Information and Specifications are Subject to Change DLBM-CA120/121 7.Power Supply Diagram ANT ¡´ VDD_1.8V BPF Balun EEPROM BC2-Audio VDD_IO VREG_IN X’tal Figure 2. Power Supply Diagram Terminal VDD_1.8V VDD_IO VREG_IN VDD=3.0V NC 2.7 to 3.6V 2.7 to 3.6V VDD=1.8V 1.7 to 1.9V 2.7 to 3.6V NC 8.RF Characteristics Operating Condition: +
