DLBM-CR320

A Class 2 V2.0+EDR Bluetooth HCI module suitable for various (mobile phones) applications

DLBM-CR320 Features

* z Suitable for Cellular, PDA, PC, Digital Cameras… applications. z Reducing the size and thickness greatly using high-density packaging technology. z High sensitivity to achieve better performance. z Compliant to various interfaces: UART, USB, PIO, PCM. z Wide operating temperature range: -30~+80¢J

DLBM-CR320 General Description

External Antenna 50 ohm TX,RX,RTS,CTS(9600bps~1382400bps) Synchronous Serial Interface for firmware download 9 terminals 6.Power Supply Diagram ANT ¡´ VDD_1.8V BPF Balun BC4-ROM VDD_IO X’tal VREG_IN Figure 2. Power Supply Diagram Terminal VDD_1.8V VDD_IO VREG_IN 3.0V NC 1.7 to 3.6V 2.2 to 4.2V.

DLBM-CR320 Datasheet (85.92 KB)

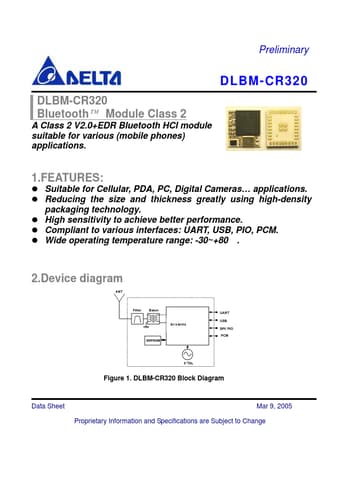

Preview of DLBM-CR320 PDF

Datasheet Details

Part number:

DLBM-CR320

Manufacturer:

ETC

File Size:

85.92 KB

Description:

A class 2 v2.0+edr bluetooth hci module suitable for various (mobile phones) applications.
Preliminary DLBM-CR320 DLBM-CR320 Bluetooth TM Module Class 2 A Class 2 V2.0+EDR Bluetooth HCI module suitable for various (mobile phones) applicatio.
