S36SE12001 17W Single output DC/DC Converter

S36SE12001 Description

Page I-III Encapsulated Type Page 1-15 Open-Frame Type S36SE12001 Datasheet S36SE series 17W Single output DC/DC Converter .

S36SE12001 Features

* Efficiency up to 87%
* Package with Industry Standard Pinout
* Package Dimension: 29.4 x25.6 x10.2mm (1.16” x1.01” x0.40”)
* Isolation Voltage 1500VDC
* Operating Temperature range - 40°C to +85°C
* Six-sided shield metal case
* Lead free, RoHs Compliant
* Over curr

S36SE12001 Applications

* such as process control and automation, transportation, data communication and telecom equipment, test equipment, medical device and everywhere where space on the PCB is critical. Model List Model Input Number Voltage (Range) S36SE3R305 S36SE05003 S36SE12001 VDC 36 (18 ~ 75) Output Voltage

📥 Download Datasheet

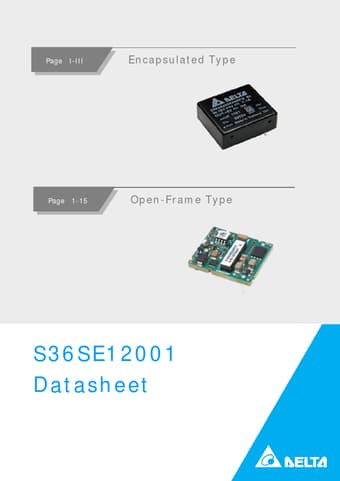

Preview of S36SE12001 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S36SE12001
Manufacturer
Delta Electronics
File Size
962.96 KB
Datasheet
S36SE12001-DeltaElectronics.pdf
Description
17W Single output DC/DC Converter
