S36SE3R305

17W Single output DC/DC Converter

S36SE3R305 Features

* Efficiency up to 87%

* Package with Industry Standard Pinout

* Package Dimension: 29.4 x25.6 x10.2mm (1.16” x1.01” x0.40”)

* Isolation Voltage 1500VDC

* Operating Temperature range - 40°C to +85°C

* Six-sided shield metal case

* Lead free, RoHs Compliant

* Over curr

S36SE3R305 Datasheet (0.96 MB)

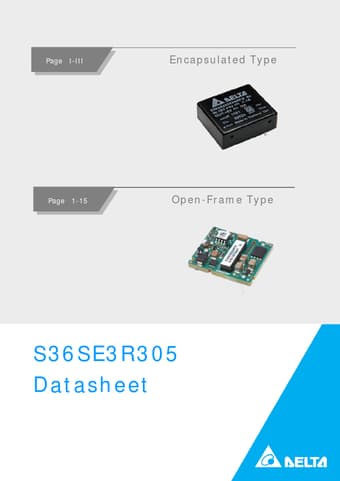

Preview of S36SE3R305 PDF

Datasheet Details

Part number:

S36SE3R305

Manufacturer:

Delta Electronics

File Size:

0.96 MB

Description:

17w single output dc/dc converter.
