DG06S4815A, DG06S0503A DG06S/D Series 6W DC/DC CONVERTER

DG06S4815A Description

DG06S/D Series 6W DC/DC CONVERTER, DIP-Package, 2:1 Wide Input Range .

DG06S4815A Features

* Efficiency up to 86% DIP Package with Industry Standard Pinout 1500VDC Voltage Isolation 2:1 Wide Input Range Low ripple and noise Complies with EN55022 Class A Temperature Performance -40℃ to +71℃ Short Circuit Protection Internal SM

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DG06S4815A, DG06S0503A. Please refer to the document for exact specifications by model.

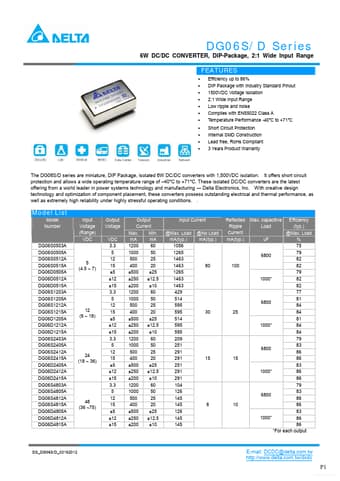

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DG06S4815A, DG06S0503A
Manufacturer
Delta
File Size
233.11 KB
Datasheet
DG06S0503A_Delta.pdf
Description
DG06S/D Series 6W DC/DC CONVERTER
Note
This datasheet PDF includes multiple part numbers: DG06S4815A, DG06S0503A.
Please refer to the document for exact specifications by model.
