DH06D2405A, DH06S1203A - DH06S/D Series 6W DC/DC CONVERTER

Delta

📥 Download Datasheet

DH06D2405A Datasheet Preview — This datasheet PDF includes multiple part numbers: DH06D2405A, DH06S1203A. Please refer to the document for exact specifications by model.

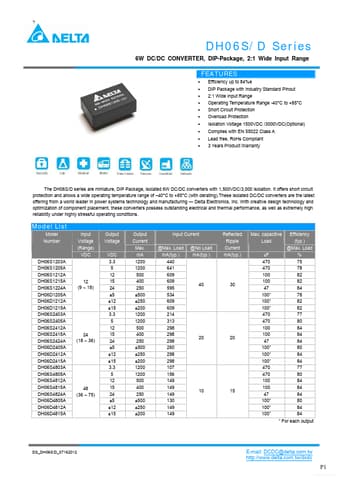

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DH06D2405A, DH06S1203A
Manufacturer	Delta
File Size	227.28 KB
Description	DH06S/D Series 6W DC/DC CONVERTER
Datasheet	DH06S1203A_Delta.pdf
Note	This datasheet PDF includes multiple part numbers: DH06D2405A, DH06S1203A. Please refer to the document for exact specifications by model.

DH06D2405A Product details

Features

Efficiency up to 84%e DIP Package with Industry Standard Pinout 2:1 Wide Input Range Operating Temperature Range -40°C to +85°C Short Circuit Protection Overload Protection Isolation Voltage 1500VDC /3000VDC(Optional) Complies with EN 55022 Class A Lead free, RoHs Compliant 3 Years Product Warranty The DH06S/D series are miniature, DIP Package, isolated 6W DC/DC converters with 1,500VDC/3,000 isolation. It offers short circuit protecti.
