DH0011C, DH0011, high voltage high current drivers

Peripheral/Power Drivers DH0011 *(SH2001) DH0011C *(SH2002) DH 0011CN *(SH2002P) high voltage high current drivers c ::z: oo ~ ~ c ::z: oo .
The DH0011 high voltage, high current driver tamily consists of hybrid integrated circuits which provide a wide range of variations in temperature ran.

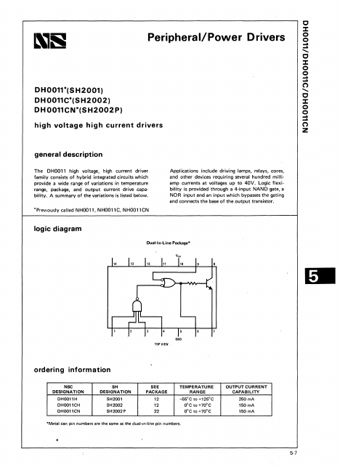

datasheet Preview Page 1 from Datasheet4u.com

DH0011-NationalSemiconductor.pdf

DH0011C Datasheet Preview — This datasheet PDF includes multiple part numbers: DH0011C, DH0011. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DH0011C, DH0011

Manufacturer:

National Semiconductor

File Size:

139.98 KB

Description:

high voltage high current drivers

Note:

This datasheet PDF includes multiple part numbers: DH0011C, DH0011.
Please refer to the document for exact specifications by model.

Applications

* include driving lamps, relays, cores, and other devices requiring several hundred milliamp currents at voltages up to 40V. Logic flexibility is provided through a 4-input NAND gate, a NOR input and an input which bypasses the geting and connects the base of the output transistor. logic diagram Dua
