DH020N03 Datasheet - WXDH

210A 30V N-channel Enhancement Mode Power MOSFET

DH020N03 Features

* Fast switching

* Low on resistance(Rdson≤2.0mΩ)

* Low gate charge(Typ: 65nC)

* Low reverse transfer capacitances(Typ: 435pF)

* 100% single pulse avalanche energy test

* 100% ΔVDS test 2D VDSS = 30V RDS(on) (TYP)= 1.5mΩ 3S ID = 210A 3 Applications

* SPMS applicatio

DH020N03 Datasheet (1.19 MB)

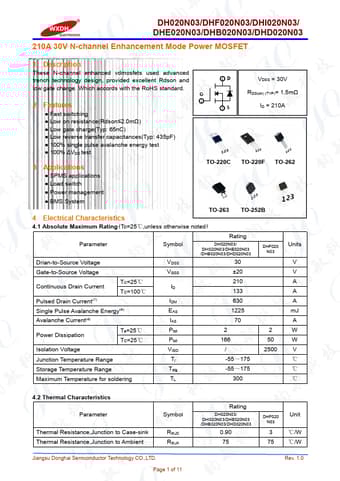

Preview of DH020N03 PDF

Datasheet Details

Part number:

DH020N03

Manufacturer:

WXDH

File Size:

1.19 MB

Description:

210a 30v n-channel enhancement mode power mosfet.
