LF8264A, LF8258 Datasheet - Delta

LF8264A FAST ETHERNET 10BASE-T/100BASE-TX TRANSFORMER

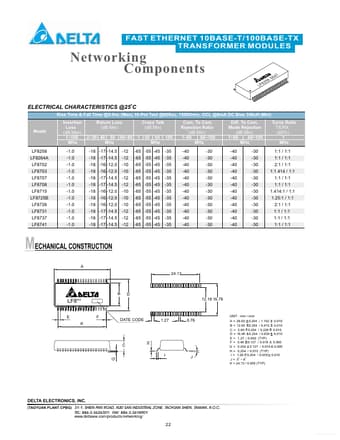

Networking Components ELECTRICAL CHARACTERISTICS @25 C o FAST ETHERNET 10BASE-T/100BASE-TX TRANSFORMER MODULES LF 5 82 0 80 47 Rise Time & Fall Time @5.0ns (Max), Hi-Pot Test @60Sec, 1500Vrms, OCL @8mA DC Bias 350uH (Min) Model Insertion Loss (dB Max) 1~100 MHz -1.0 -1.0 -1.0 -1.0 -1.0 -1.0 -1.0 -1.0 -1.0 -1.0 -1.0 -1.0 Return Loss (dB Min) 2~30 40 50 MHz -18 -18 -18 -18 -18 -18 -18 -18 -18 -18 -18 -18 -17 -14.5 -17 -14.5 -16 -12.0 -16 -12.0 -17 -14.5 -17 -14.5 -16 -12.0 -16 -12.0 -16 -12..

LF8258-Delta.pdf

This datasheet PDF includes multiple part numbers: LF8264A, LF8258. Please refer to the document for exact specifications by model.
LF8264A Datasheet Preview Page 2 LF8264A Datasheet Preview Page 3

Datasheet Details

Part number:

LF8264A, LF8258

Manufacturer:

Delta

File Size:

208.96 KB

Description:

Fast ethernet 10base-t/100base-tx transformer.

Note:

This datasheet PDF includes multiple part numbers: LF8264A, LF8258.
Please refer to the document for exact specifications by model.
