DEI1073 (DEI1073 - DEI1075) Arinc 429 Line Driver

The DEI1073 family of 8 pin BiCMOS integrated circuits are line drivers designed to directly drive the ARINC 429 avionics serial digital data bus. The device converts TTL/CMOS serial input data to the tri-level RZ bipolar differential modulation format of the ARINC bus. The outputs are tri-state cap.

DEI1073 Features

* TTL/CMOS TO ARINC 429 Line Driver.

* Rate control input set Hi (100KBS) or Lo (12.5KBS) speed slew rates.

* Operates from ±9.5V to ±16.5V power supply.

* Drives full ARINC load.

* Output resistor options: 0, 10 or 37.5 Ohms.

* Tristate Outputs

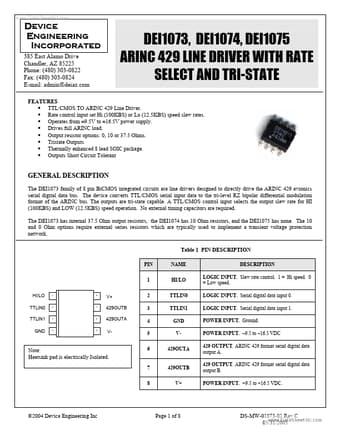

DEI1075_DeviceEngineering.pdf
