DEI1074 Datasheet - Device Engineering

(DEI1073 - DEI1075) Arinc 429 Line Driver

DEI1074 Features

* TTL/CMOS TO ARINC 429 Line Driver.

* Rate control input set Hi (100KBS) or Lo (12.5KBS) speed slew rates.

* Operates from ±9.5V to ±16.5V power supply.

* Drives full ARINC load.

* Output resistor options: 0, 10 or 37.5 Ohms.

* Tristate Outputs

DEI1074 General Description

The DEI1073 family of 8 pin BiCMOS integrated circuits are line drivers designed to directly drive the ARINC 429 avionics serial digital data bus. The device converts TTL/CMOS serial input data to the tri-level RZ bipolar differential modulation format of the ARINC bus. The outputs are tri-state cap.

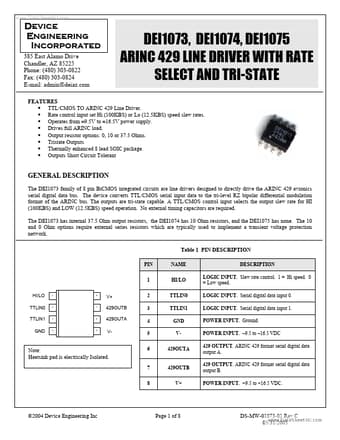

DEI1074 Datasheet (244.16 KB)

DEI1074 Datasheet Preview — Preview of DEI1074 PDF

Datasheet Details

Part number:

DEI1074

Manufacturer:

Device Engineering

File Size:

244.16 KB

Description:

(dei1073 - dei1075) arinc 429 line driver.
www.DataSheet4U.com Device Engineering Incorporated 385 East Alamo Drive Chandler, AZ 85225 Phone: (480) 303-0822 Fax: (480) 303-0824 E-mail: admin@d.
