553-xxxx-xxx

LED Array

553-xxxx-xxx Features

* 2 through 12 LEDs

* Mount on .200 center lines

* Standard View: 553-xxxx-0xx compatible with: 553-xxxx single bi-level

* Backlight: 553-22xx-1xx compatible with: 553-22xx-100 single backlighting bi-level 3.68 [.145] 90° TOP LED 4.44 [.175] 2.54 REF [.100] TYP 2

553-xxxx-xxx Datasheet (76.65 KB)

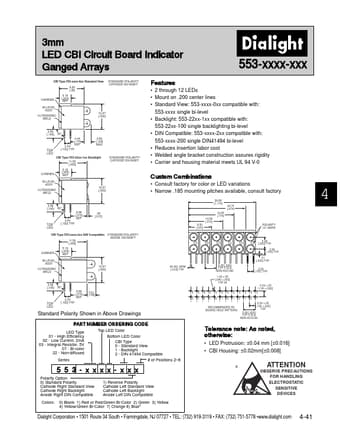

Preview of 553-xxxx-xxx PDF

Datasheet Details

Part number:

553-xxxx-xxx

Manufacturer:

Dialight

File Size:

76.65 KB

Description:

Led array.
3mm LED CBI Circuit Board Indicator Ganged Arrays 553-xxxx-xxx CBI Type 553-xxxx-0xx Standard View CARRIER 9.06 [.36] 5.16 [.203] REF STANDARD PO.
