553S

Low Skew 1 to 4 Clock Buffer

553S Features

* Low additive phase jitter RMS: 50fs

* Extremely low skew outputs (50ps)

* Low cost clock buffer

* Packaged in 8-SOIC and small 8-DFN packages, Pb-free

* Input/Output clock frequency up to 200MHz

* Ideal for networking clocks

* Operating volta

553S General Description

The 553S is a low skew, single input to four output, clock buffer. The 553S has best in class additive phase Jitter of sub 50 fsec. Renesas makes many non-PLL and PLL based low skew output devices as well as Zero Delay Buffers to synchronize clocks. Contact Renesas for all of your clocking needs. F.

553S Datasheet (952.43 KB)

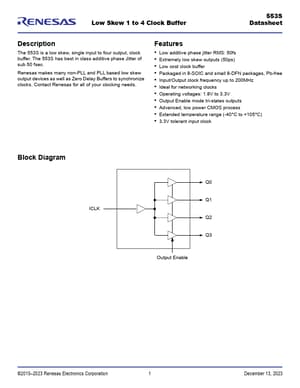

Preview of 553S PDF

Datasheet Details

Part number:

553S

Manufacturer:

Renesas ↗

File Size:

952.43 KB

Description:

Low skew 1 to 4 clock buffer.
