DM4035 Datasheet - Digimimic

1:4 Power Splitter

DM4035 Features

*          Ultra wideband: Up to 12.5 Gb/s NRZ High Input sensitivity: 300mV single ended 900 mVpp single-ended output Jitter RMS:

DM4035 General Description

The DM4035 is an ultra wideband 1-to-4 active power splitter fabricated using a 0.1 mm HBT GaAs technology. It is based on an ECL topology in order to guarantee high-speed operations. The device is capable of replicating NRZ streams with data rate up to 12.5Gb/s or clock signal with frequency up to .

DM4035 Datasheet (265.89 KB)

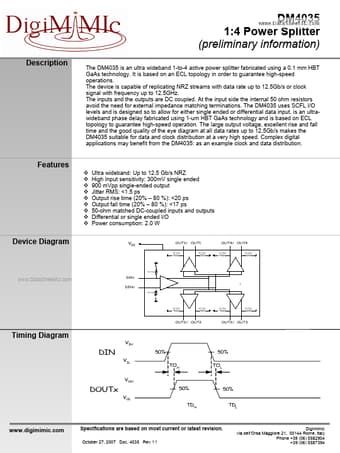

Preview of DM4035 PDF

Datasheet Details

Part number:

DM4035

Manufacturer:

Digimimic

File Size:

265.89 KB

Description:

1:4 power splitter.
