DM412

3-CHANNEL CONSTANT CURRENT LED DRIVERS

DM412 Features

* z z z z z z z z z z Maximum constant current outputs: 200mA determined by three external resistors Maximum sinking output voltage: 17V Maximum serial-in clock frequency: 20 MHz 16-bit linear PWM control current outputs Built-in buffers for cascading clock, data, and strobe to next driver PWM free-ru

DM412 General Description

DM412 is a PWM enabled LED driver specifically designed for LED video display or lighting applications. Each channel has linear adjustable 16-bits (65536 steps) grayscale PWM control current outputs. It incorporates shift registers, data latches, 3-channel constant current circuitry with current val.

DM412 Datasheet (1.15 MB)

Preview of DM412 PDF

Datasheet Details

Part number:

DM412

Manufacturer:

SILICON TOUCH TECHNOLOGY

File Size:

1.15 MB

Description:

3-channel constant current led drivers.

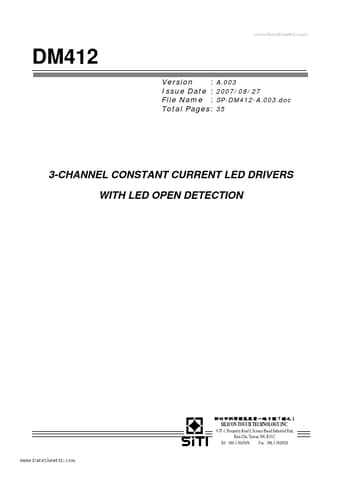

www.DataSheet4U.com DM412 Version : Issue Date : File Name : Total Pages : A.003 2007/08/27 SP-DM412-A.003.doc 35 3-CHANNEL CONSTANT CURRENT LED DRI.
