* Halogen-free
* TrenchFET® Power MOSFET
* 100 % UIS Tested APPLICATIONS
* Load Switches RoHS COMPLIANT S1 1 G1 2 S2 3 G2 4 SO-8 Top View 8 D1 7 D1 6 D2 5 D2 S1 S2 G1 G2 D1 P-Channel MOSFET D2 P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherw
DTM4951
Din-Tek
426.13 KB
Dual p-channel mosfet.

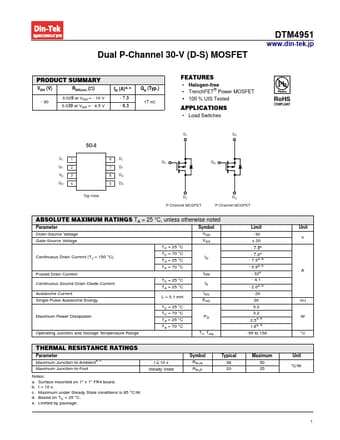

Dual P-Channel 30-V (D-S) MOSFET
DTM4951
www.din-tek.jp
PRODUCT SUMMARY
VDS (V)
RDS(on) (Ω)
- 30 0.029 at VGS = - 10 V 0.039 at VGS = - 4.5 V
ID.
