* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % UIS Tested
* 100 % Rg Tested
* Compliant to RoHS Directive 2002/95/EC APPLICATIONS
* Set Top Box
* Low Current DC/DC D1 D2 G1 S1 N-Channel MOSFET G2 S2
DTM4916
Din-Tek
447.83 KB
Dual n-channel mosfet.

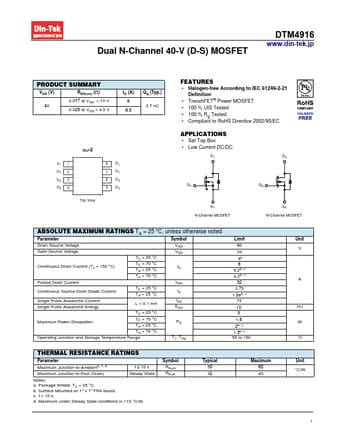

Dual N-Channel 40-V (D-S) MOSFET
DTM4916
www.din-tek.jp
PRODUCT SUMMARY
VDS (V) 40
RDS(on) (Ω) 0.017 at VGS = 10 V 0.025 at VGS = 4.5 V
ID (A) 8 .
