* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 175 °C Maximum Junction Temperature
* 100 % Rg Tested
* Compliant to RoHS directive 2002/95/EC D1 D2 G1 G2 Top View S1 N-Channel MOSFET S2 N-Channel MOSFET ABSOLUTE MAXIMUM R
DTM4946
Din-Tek
372.00 KB
Dual n-channel mosfet.

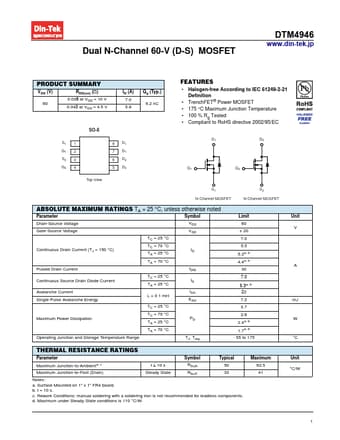

Dual N-Channel 60-V (D-S) MOSFET
DTM4946
www.din-tek.jp
PRODUCT SUMMARY
VDS (V) 60
RDS(on) (Ω) 0.038 at VGS = 10 V 0.043 at VGS = 4.5 V
ID (A) 7..
