DTM4936 Dual N-Channel MOSFET

Din-Tek

Description

Dual N-Channel 30-V (D-S) MOSFET DTM4936 www.din-tek.jp PRODUCT SUMMARY VDS (V) 30 RDS(on) (Ω) 0.015 at VGS = 10 V 0.024 at VGS = 4.5 V ID (A) 6..

📥 Download Datasheet

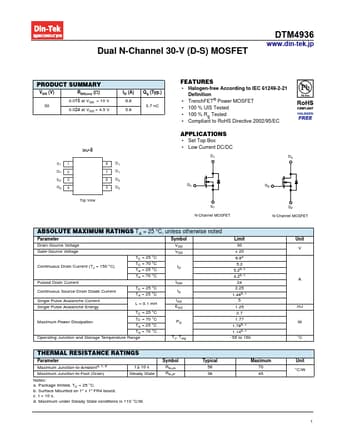

DTM4936 Datasheet Preview — Preview of DTM4936 PDF

Datasheet Specifications

Part number: DTM4936
Manufacturer: Din-Tek
File Size: 359.47 KB
Datasheet: DTM4936-DinTek.pdf
Description: Dual N-Channel MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % UIS Tested
* 100 % Rg Tested

Applications

* Set Top Box
* Low Current DC/DC D1 D2 G1 S1 N-Channel MOSFET G2 S2 N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) Pulsed Drain Current TC = 25 °C
