* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* Low On-Resistance
* 100 % Rg Tested
* Compliant to RoHS Directive 2002/95/EC APPLICATIONS
* DC/DC Converters, High Speed Switching ABSOLUTE MAXIMUM RATINGS (TA = 25 °C,
DTS6504
Din-Tek
317.67 KB
N-channel mosfet.

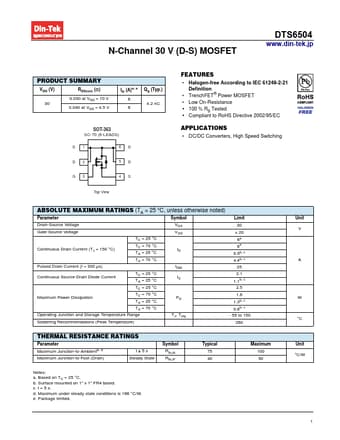

N-Channel 30 V (D-S) MOSFET
DTS6504
www.din-tek.jp
PRODUCT SUMMARY
VDS (V)
RDS(on) ()
0.030 at VGS = 10 V 30
0.040 at VGS = 4.5 V
ID (A)a, e 6 .
