AH293 LOW VOLTAGE HALL-EFFECT SMART FAN MOTOR CONTROLLER

AH293 is a monolithic fan motor controller with Hall sensor’s capability. It contains two complementary open-collector transistors for Motor’s coil driving, automatic lock current shutdown, and recovery protections. Also, rotor-state detection (RD) output is for speed detection. Rotor-lock shutdown .

AH293 Features

* On Chip Hall Sensor Rotor-Locked Shutdown Automatically Restart Rotor-State Detection (RD) Output Built-in Zener Protection for Output Driver Operating Voltage: 1.8V~5.75 V Output Current: IO( AVE ) = 400 mA Le

AH293_DiodesIncorporated.pdf

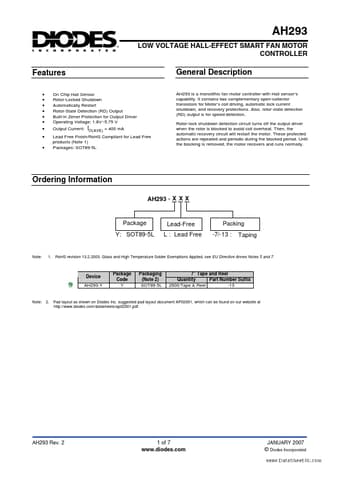

Preview of AH293 PDF
AH293 Datasheet Preview Page 2 AH293 Datasheet Preview Page 3

Datasheet Details

Part number:

AH293

Manufacturer:

DIODES ↗ Incorporated

File Size:

162.30 KB

Description:

Low voltage hall-effect smart fan motor controller.
