AH3762Q - HIGH-VOLTAGE / HIGH-SENSITIVITY AUTOMOTIVE HALL EFFECT LATCH

Diodes Incorporated

📥 Download Datasheet

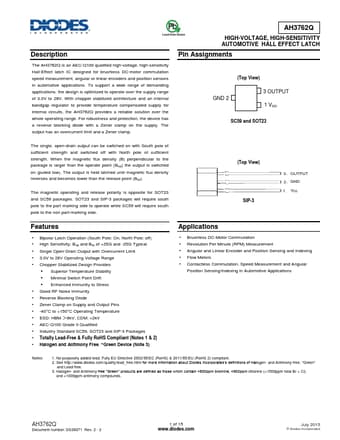

AH3762Q Datasheet Preview — Preview of AH3762Q PDF

Datasheet Details

Part number: AH3762Q
Manufacturer: DIODES ↗ Incorporated
File Size: 518.94 KB
Datasheet: AH3762Q-DiodesIncorporated.pdf
Description: HIGH-VOLTAGE / HIGH-SENSITIVITY AUTOMOTIVE HALL EFFECT LATCH

AH3762Q Product details

Description

The AH3762Q is an AEC-Q100 qualified high-voltage, high-sensitivity Hall-Effect latch IC designed for brushless DC-motor commutation speed measurement, angular or linear encoders and position sensors in automotive applications..

Features

Bipolar Latch Operation (South Pole: On, North Pole: off).
High Sensitivity: Bop and Brp of +25G and -25G Typical.
Single Open-Drain Output with Overcurrent Limit.
3.0V to 28V Operating Voltage Range.
Chopper Stabilized Design Provides.
Superior Temperature Stability.
Minimal Switch Point Drift.
Enhanced Immunity to Stress.
Good RF Noise Immunity.
Reverse Blocking Diode.
Zener Clamp on Supply and Output Pins.
