AP4312 Datasheet PDF (CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER)

AP4312 - CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER

Description

The AP4312 is a highly integrated solution for a constant voltage/constant current mode SMPS application.

The AP4312 contains one 1.21V voltage reference, one low voltage reference used in current sensing circuit and two operational amplifiers.

Features

Adapters.
Battery Chargers.
Constant Voltage and Constant Current Control.
Precision Internal Voltage Reference.
Low External Component Count.
Easy Compensation.
Low Supply Current: 180A.
Current Control Loop Reference: 70mV.
Operating Supply Voltage: 1.7V to 18V.
Totally Lead-free & Fully RoHS Compliant (Note 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3) Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (Ro.

Datasheet Details

Part number	AP4312
Manufacturer	DIODES Incorporated
File Size	317.87 KB
Description	CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER
Datasheet	AP4312 Datasheet

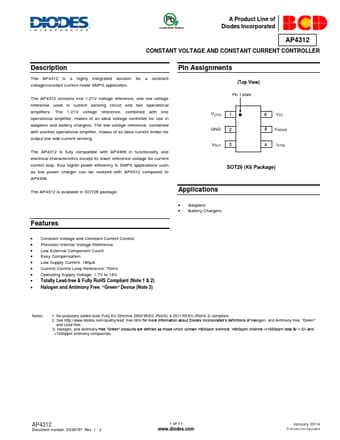

Additional preview pages of the AP4312 datasheet.

📁 Similar Datasheet

AP4312Q - CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER (Diodes)

AP431 - Adjustable Precision Shunt Regulator (Anachip)

AP4310 - DUAL OP AMP AND VOLTAGE REFERENCE (BCD Semiconductor)

AP4310A - DUAL OP AMP AND VOLTAGE REFERENCE (Diodes)

AP4310E - DUAL OP AMP AND VOLTAGE REFERENCE (Diodes)

AP4313 - CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER (Diodes)

AP4313 - CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER (BCD Semiconductor)

AP431A - Adjustable Precision Shunt Regulator (Anachip)

AP431I - LOW CATHODE CUREENT ADJUSTABLE PRECISION SHUNT REGULATOR (Diodes)

AP431S - LOW CATHODE CURRENT ADJUSTABLE PRECISION SHUNT REGULATOR (Diodes)

Full PDF Text Transcription

Click to expand full text

A Product Line of Diodes Incorporated AP4312 CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER Description The AP4312 is a highly integrated solution for a constant voltage/constant current mode SMPS application. The AP4312 contains one 1.21V voltage reference, one low voltage reference used in current sensing circuit and two operational amplifiers. The 1.21V voltage reference, combined with one operational amplifier, makes of an ideal voltage controller for use in adapters and battery chargers. The low voltage reference, combined with another operational amplifier, makes of an ideal current limiter for output low side current sensing.
