ATS137, SINGLE HALL EFFECT SWITCH

ATS137 SINGLE HALL EFFECT SWITCH .
ATS137 is a switched Hall-Effect IC, which is for contactless switching applications.

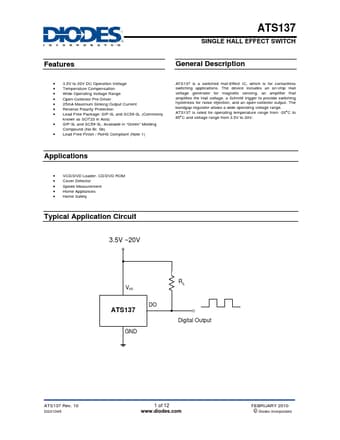

datasheet Preview Page 1 from Datasheet4u.com

ATS137_DiodesIncorporated.pdf

ATS137 Datasheet Preview — Preview of ATS137 PDF

Datasheet Details

Part number:

ATS137

Manufacturer:

DIODES ↗ Incorporated

File Size:

185.59 KB

Description:

SINGLE HALL EFFECT SWITCH

Features

* 3.5V to 20V DC Operation Voltage Temperature Compensation Wide Operating Voltage Range Open-Collector Pre-Driver 25mA Maximum Sinking Output Current Reverse Polarity Protection Lead Free Finish/RoHS Compliant f

Applications

* The device includes an on-chip Hall voltage generator for magnetic sensing, an amplifier that amplifies the Hall voltage, a Schmitt trigger to provide switching hysteresis for noise rejection, and an open-collector output. The bandgap regulator allows a wide operating voltage range. ATS137 is rated
