ATS177

SINGLE OUTPUT HALL EFFECT LATCH

ATS177 Features

* Bipolar Hall-Effect latch sensor

* 3.5V to 20V DC operating voltage

* Temperature compensation

* Open-collector pre-driver

* 25mA maximum output sink current

* Built-in reverse polarity protection

* Operating temperature: -40C to +125C

ATS177 General Description

ATS177 is an integrated Hall-Effect latch sensor designed for electronic commutation of brush-less DC motor applications. The device includes an on-chip Hall voltage generator for magnetic sensing, a comparator that amplifies the Hall voltage, and a schmitt trigger to provide switching hysteresis fo.

ATS177 Datasheet (498.59 KB)

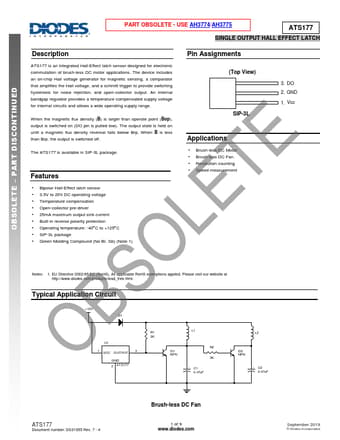

Preview of ATS177 PDF

Datasheet Details

Part number:

ATS177

Manufacturer:

DIODES ↗ Incorporated

File Size:

498.59 KB

Description:

Single output hall effect latch.
