BAT1000 - 1A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Datasheet Summary

Features

  • Mechanical Data.
  • Very Low Forward Voltage Drop.
  • Package: SOT23.
  • High Conductance.
  • Package Material: Molded Plastic. UL Flammability Classification.
  • For Use in DC-DC Converter, PCMCIA, and Mobile Rating 94V-0 Telecommunications.

📥 Download Datasheet

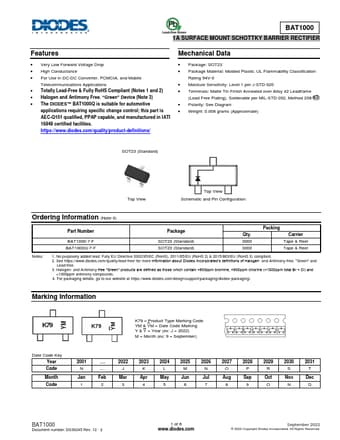

Datasheet preview – BAT1000

Datasheet Details

Part number BAT1000
Manufacturer DIODES Incorporated
File Size 456.43 KB
Description 1A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Datasheet download datasheet BAT1000 Datasheet
