BYV28100 - 3.0A SUPER-FAST GLASS BODY RECTIFIER

Product Overview

Diodes Incorporated

📥 Download Datasheet

BYV28100 3.0A SUPER-FAST GLASS BODY RECTIFIER by Diodes Incorporated - Datasheet Preview — Datasheet preview – BYV28100

Datasheet Details

Part number	BYV28100
Manufacturer	DIODES Incorporated
File Size	75.48 KB
Description	3.0A SUPER-FAST GLASS BODY RECTIFIER
Datasheet	BYV28100 Datasheet

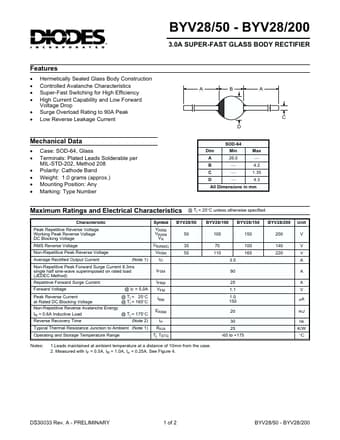

Additional preview pages of the BYV28100 datasheet.

Product details

Features

Hermetically Sealed Glass Body Construction Controlled Avalanche Characteristics Super-Fast Switching for High Efficiency High Current Capability and Low Forward Voltage Drop Surge Overload Rating to 90A Peak Low Reverse Leakage Current A B A C D Mechanical Data.
Case: SOD-64, Glass Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 Polarity: Cathode Band Weight: 1.0 grams (approx. ) Mounting Position: Any Mark.
