BYV27 - 2.0A SUPER-FAST GLASS BODY RECTIFIER

Product Overview

Diodes Incorporated

Part number	BYV27
Manufacturer	DIODES Incorporated
File Size	74.80 KB
Description	2.0A SUPER-FAST GLASS BODY RECTIFIER
Datasheet	BYV27 Datasheet

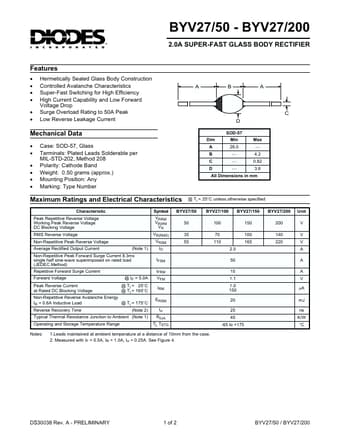

Additional preview pages of the BYV27 datasheet.

Hermetically Sealed Glass Body Construction Controlled Avalanche Characteristics Super-Fast Switching for High Efficiency High Current Capability and Low Forward Voltage Drop Surge Overload Rating to 50A Peak Low Reverse Leakage Current A B A C D SOD-57 Dim A B C D Min 26.0 ¾ ¾ ¾ Max ¾ 4.2 0.82 3.6 Mechanical Data.
Case: SOD-57, Glass Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 Polarity: Cathode Band We.
