BYV27-150 - EPITAXIAL AVALANCHE DIODES

This page provides the datasheet information for the BYV27-150, a member of the BYV27 EPITAXIAL AVALANCHE DIODES family.

Datasheet Summary

Features

  • :.
  • High current capability.
  • High surge current capability.
  • High reliability.
  • Low reverse current.
  • Low forward voltage drop.
  • Very fast recovery.
  • Pb / RoHS Free DO - 41 0.107 (2.7) 0.080 (2.0) 1.00 (25.4) MIN. 0.205 (5.2) 0.166 (4.2).

📥 Download Datasheet

Datasheet preview – BYV27-150

Datasheet Details

Part number BYV27-150
Manufacturer EIC
File Size 28.71 KB
Description EPITAXIAL AVALANCHE DIODES
Datasheet download datasheet BYV27-150 Datasheet
Additional preview pages of the BYV27-150 datasheet.

📁 Similar Datasheet

  • BYV27-150 - Ultra-Fast Avalanche Sinterglass Diode (Vishay)
  • BYV27-150 - Ultra fast low-loss controlled avalanche rectifiers (NXP)
  • BYV27-150 - RECTIFIERS (Microsemi Corporation)
  • BYV27-150 - GLASS PASSIVATED FAST EFFICIENT RECTIFIER (General Semiconductor)
  • BYV27-150 - ULTRAFAST RECOVERY RECTIFIERS (Digitron Semiconductors)
  • BYV27-150GE - GLASS PASSIVATED JUNCTION ULTRAFAST EFFICIENT SILICON RECTIFIER (Gulf Semiconductor)
  • BYV27-100 - Ultra-Fast Avalanche Sinterglass Diode (Vishay)
  • BYV27-100 - Ultra fast low-loss controlled avalanche rectifiers (NXP)
  • BYV27-100 - RECTIFIERS (Microsemi Corporation)
  • BYV27-100 - GLASS PASSIVATED FAST EFFICIENT RECTIFIER (General Semiconductor)
Other Datasheets by EIC
  • BYV27-100 - EPITAXIAL AVALANCHE DIODES
  • BYV27-200 - EPITAXIAL AVALANCHE DIODES
  • BYV27-50 - EPITAXIAL AVALANCHE DIODES
  • BYV27 - EPITAXIAL AVALANCHE DIODES
  • BYV26A - VERY FAST SOFT-RECOVERY AVALANCHE RECTIFIER DIODES
  • BYV26B - VERY FAST SOFT-RECOVERY AVALANCHE RECTIFIER DIODES
  • BYV26C - VERY FAST SOFT-RECOVERY AVALANCHE RECTIFIER DIODES
  • BYV26D - VERY FAST SOFT-RECOVERY AVALANCHE RECTIFIER DIODES

Full PDF Text Transcription

Click to expand full text

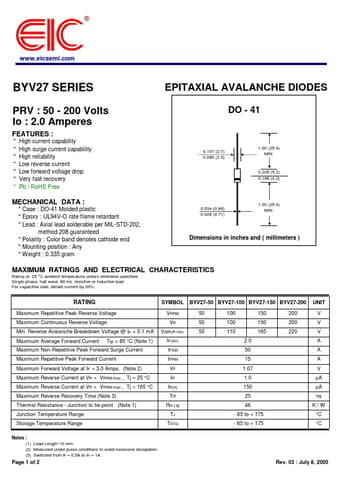

www.eicsemi.com BYV27 SERIES EPITAXIAL AVALANCHE DIODES PRV : 50 - 200 Volts Io : 2.0 Amperes FEATURES : * High current capability * High surge current capability * High reliability * Low reverse current * Low forward voltage drop * Very fast recovery * Pb / RoHS Free DO - 41 0.107 (2.7) 0.080 (2.0) 1.00 (25.4) MIN. 0.205 (5.2) 0.166 (4.2) MECHANICAL DATA : * Case : DO-41 Molded plastic * Epoxy : UL94V-O rate flame retardant * Lead : Axial lead solderable per MIL-STD-202, method 208 guaranteed * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.335 gram 0.034 (0.86) 0.028 (0.71) 1.00 (25.4) MIN. Dimensions in inches and ( millimeters ) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25 °C ambient temperature unless otherwise specified.
