DDZX969x, DDZX9682 - (DDZX9682 - DDZX9717) SURFACE MOUNT PRECISION ZENER DIODE

Diodes Incorporated

📥 Download Datasheet

DDZX969x Datasheet Preview — This datasheet PDF includes multiple part numbers: DDZX969x, DDZX9682. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DDZX969x, DDZX9682
Manufacturer	DIODES ↗ Incorporated
File Size	183.41 KB
Description	(DDZX9682 - DDZX9717) SURFACE MOUNT PRECISION ZENER DIODE
Datasheet	DDZX9682_DiodesIncorporated.pdf
Note	This datasheet PDF includes multiple part numbers: DDZX969x, DDZX9682. Please refer to the document for exact specifications by model.

DDZX969x Product details

Features

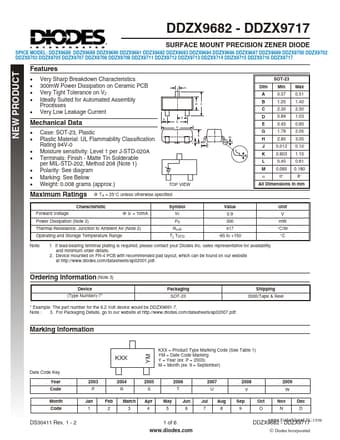

Very Sharp Breakdown Characteristics 300mW Power Dissipation on Ceramic PCB Very Tight Tolerance on VZ Ideally Suited for Automated Assembly Processes Very Low Leakage Current E D G H SOT-23 A Dim A B C Min 0.37 1.20 2.30 0.89 0.45 1.78 2.80 0.013 0.903 0.45 0.085 0° Max 0.51 1.40 2.50 1.03 0.60 2.05 3.00 0.10 1.10 0.61 0.180 8° B C D E G Mechanical Data Case: SOT-23, Plastic Plastic Material: UL Flammability Classific.
